Trane Technologies prepares for very severe hail

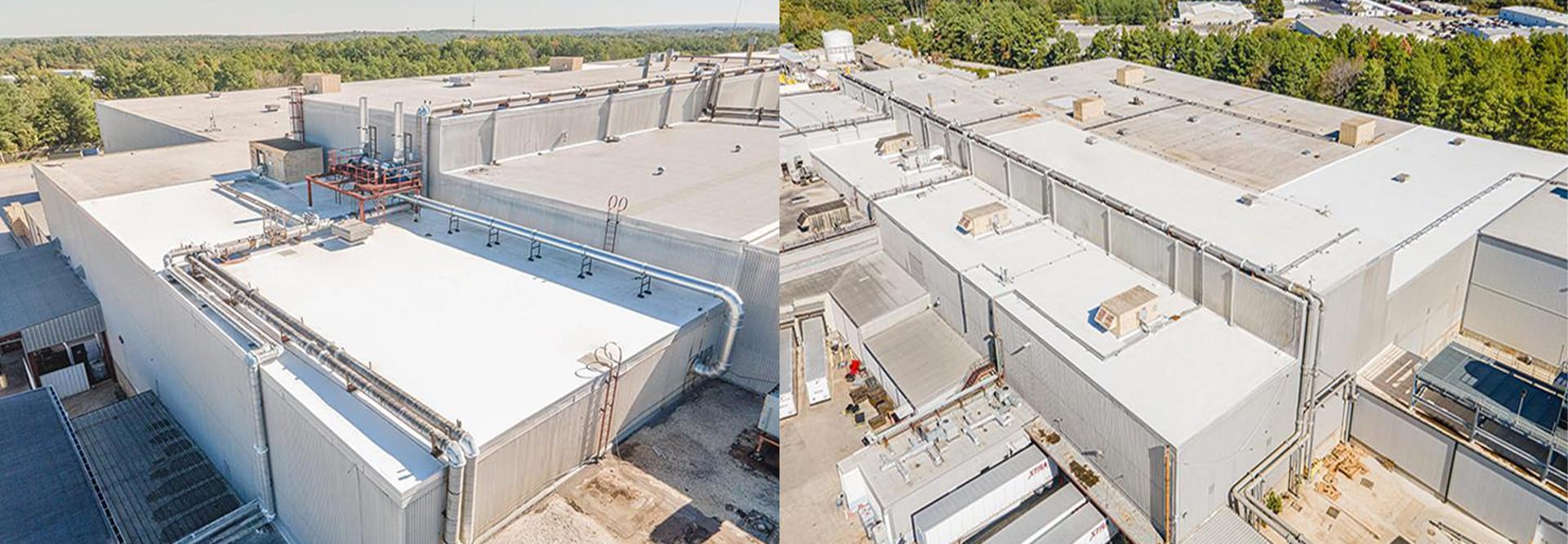

Aerial photos of Trane Technologies buildings in Tyler, TX with new GAF commercial roofing materials

Solution

Single-Ply

Completed

June 2023

Building Type

Commercial property

Size

650 squares

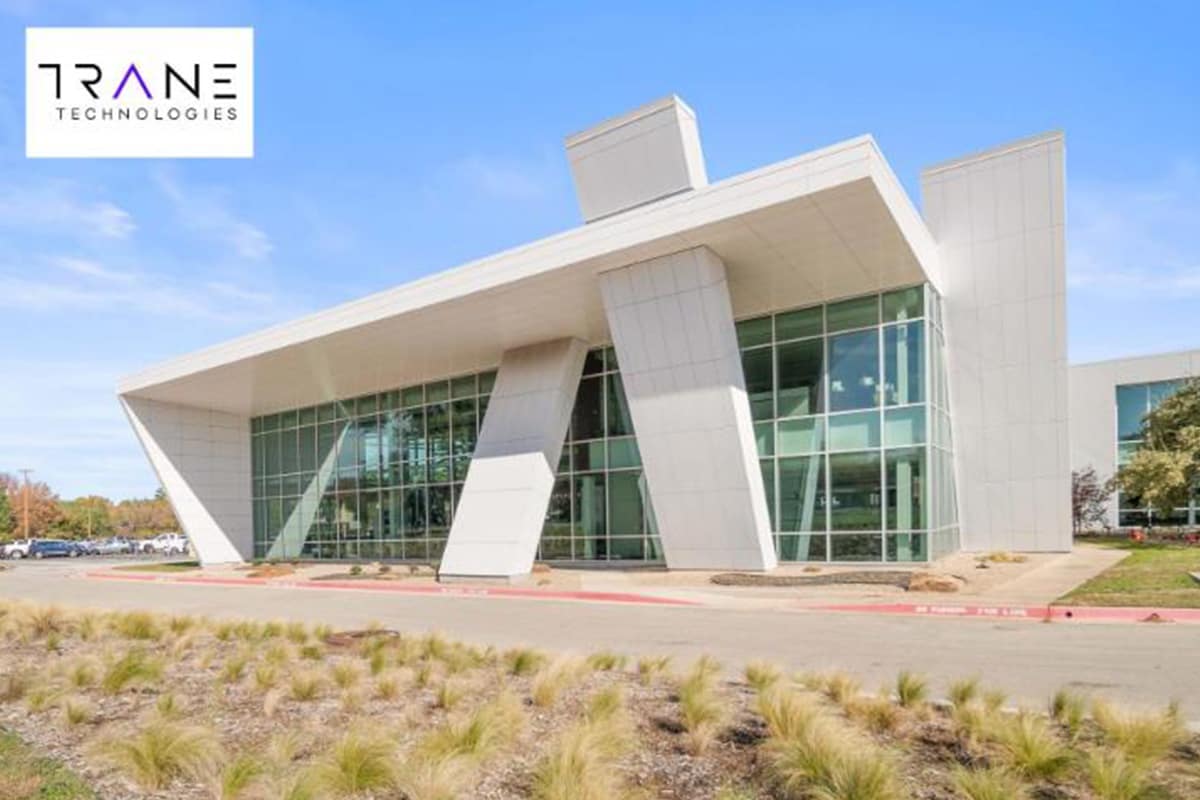

About the Trane Technologies Manufacturing Facility

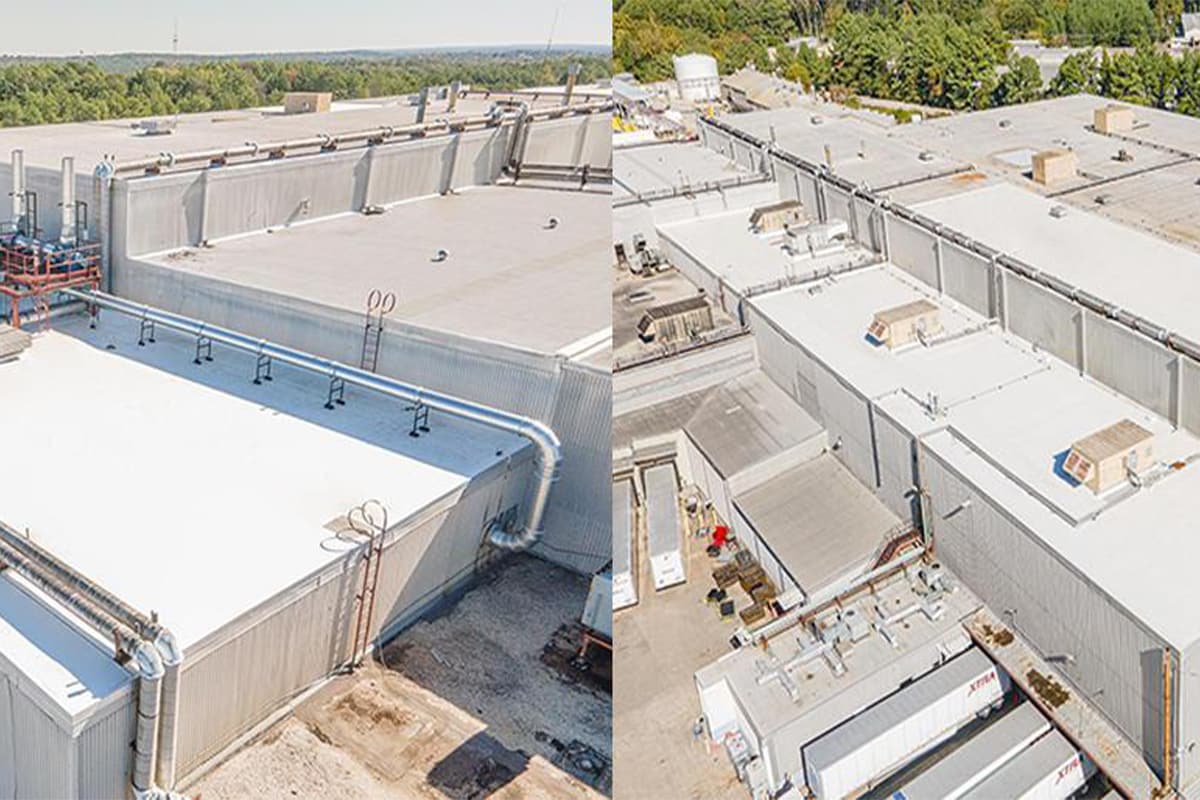

In Tyler, TX, Trane Technologies manufactures air conditioners and heat pumps, and maintains a sophisticated testing facility for their wide range of products. The plant facilities date to the ’50s and ’60s. Seeing that time and Texas weather had inevitably taken their toll, Trane selected Landmark Roofing & Sheet Metal — a GAF PlatinumElite™ Commercial Contractor — for a complete 650 square reroof.

Landmark has worked with Trane Technologies before, so the rapport between the two quality-focused organizations helped keep the project running smoothly. “The folks at Trane are great to work with,” said Annie Johnston, Head of Business Development for Landmark. “The communication is above par.”

Thanks to that great relationship, Landmark completely understood Trane Technologies’ priorities, and reached out to GAF to help deliver the roof they needed, precisely how they needed it.

Challenges

The expansive Trane Technologies facility is insured by Factory Mutual, which is, of course, renowned for its standard-setting roof assembly requirements. To satisfy FM, Landmark Roofing and Sheet Metal worked with GAF Design Services to specify a system approved under FM 4470 - Very Severe Hail (Class 1-VSH) featuring GAF EverGuard® Extreme 60 mil TPO, DensDeck StormX™ Prime Roof Board, and EnergyGuard™ Polyiso Insulation.

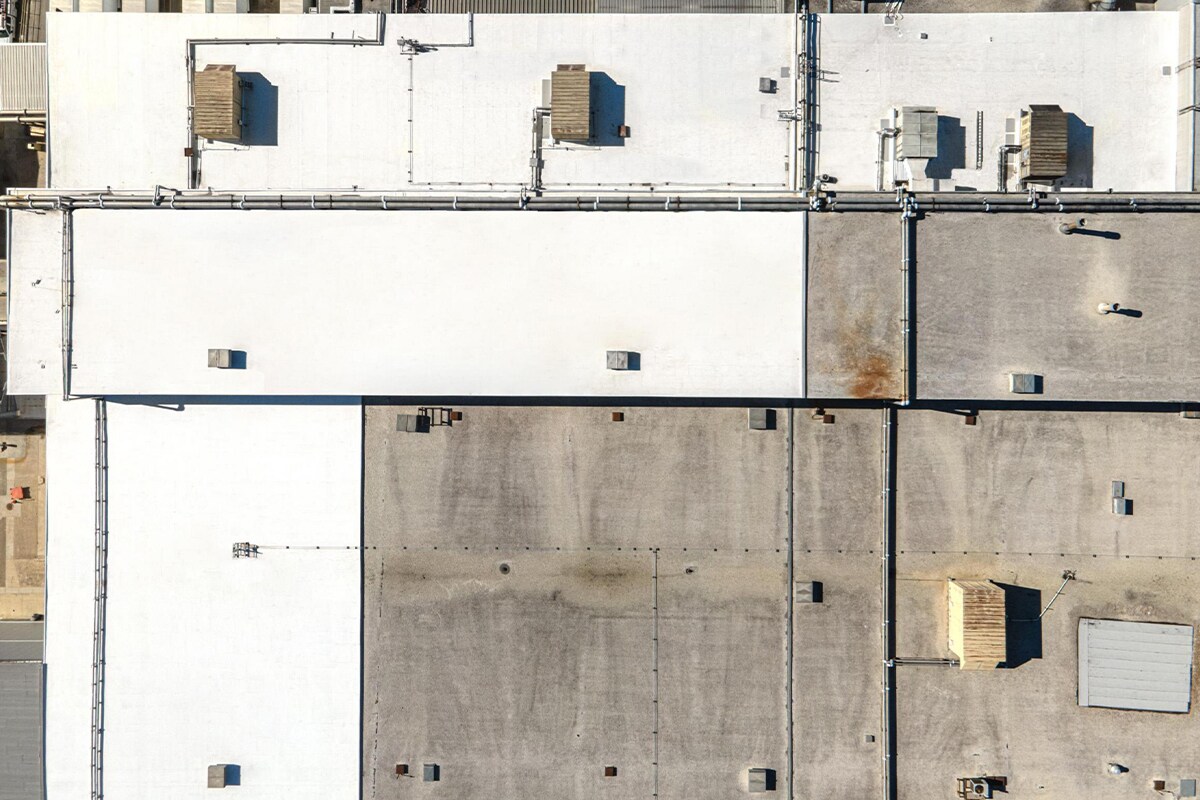

The original roof to be replaced comprised two systems — one section with BUR over perlite and wood fiber board, and another with 2-ply Mod Bit over perlite and polyiso. Both systems sat atop a metal deck so old that its profile is no longer available. Landmark identified a 22 gauge steel replacement that could be nested inside the existing — but discontinued — profile. The GAF Tapered Design Team also worked with Landmark to create a sophisticated tapered design including crickets that maximizes the existing roof drain system.

Another challenge was timing. The Trane Technologies facility runs two shifts — one from 6 AM to 3 PM and the second from 3 PM to midnight. In order to keep the line running, Landmark Roofing and Sheet Metal started work at 12:30 AM each morning, and had the roof closed up and cleaned up by 6 AM when the Trane crew arrived.

The Landmark crew adhered the EnergyGuard® Extreme TPO with GAF QuickSpray, which saved time and helped keep the work area cleaner and more organized. “This is a manufacturing facility, and if even one drop spills off that roof onto the floor, it’s game-over,” said Lee Todd, Operations Manager of Landmark Roofing and Sheet Metal. “Using QuickSpray was a no-brainer. It’s cleaner than working with buckets, and it’s way more efficient.”

Clearly, working primarily at night has its specific demands — including specialty lighting rigs — but it also brought small unexpected benefits. “Areas where we had to address bad decking were much easier to see at night because the interior of the building was lit up,” said Lee.

Solution

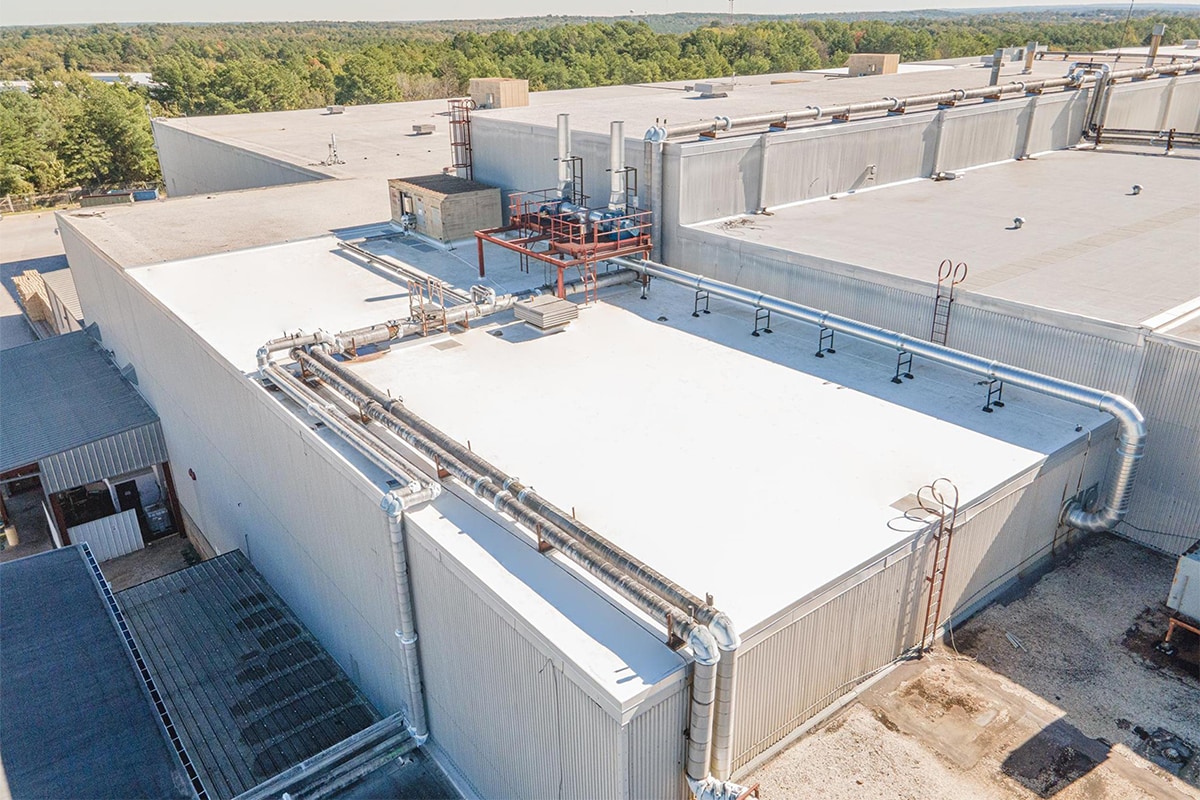

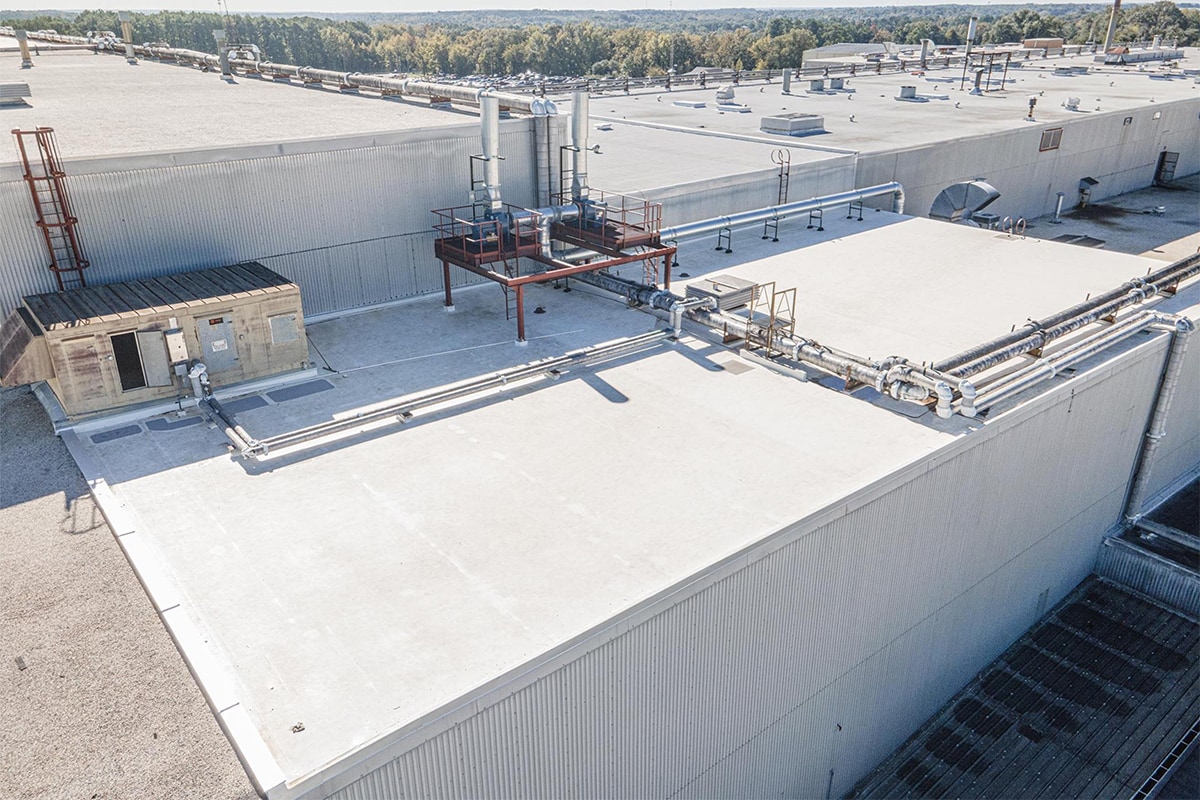

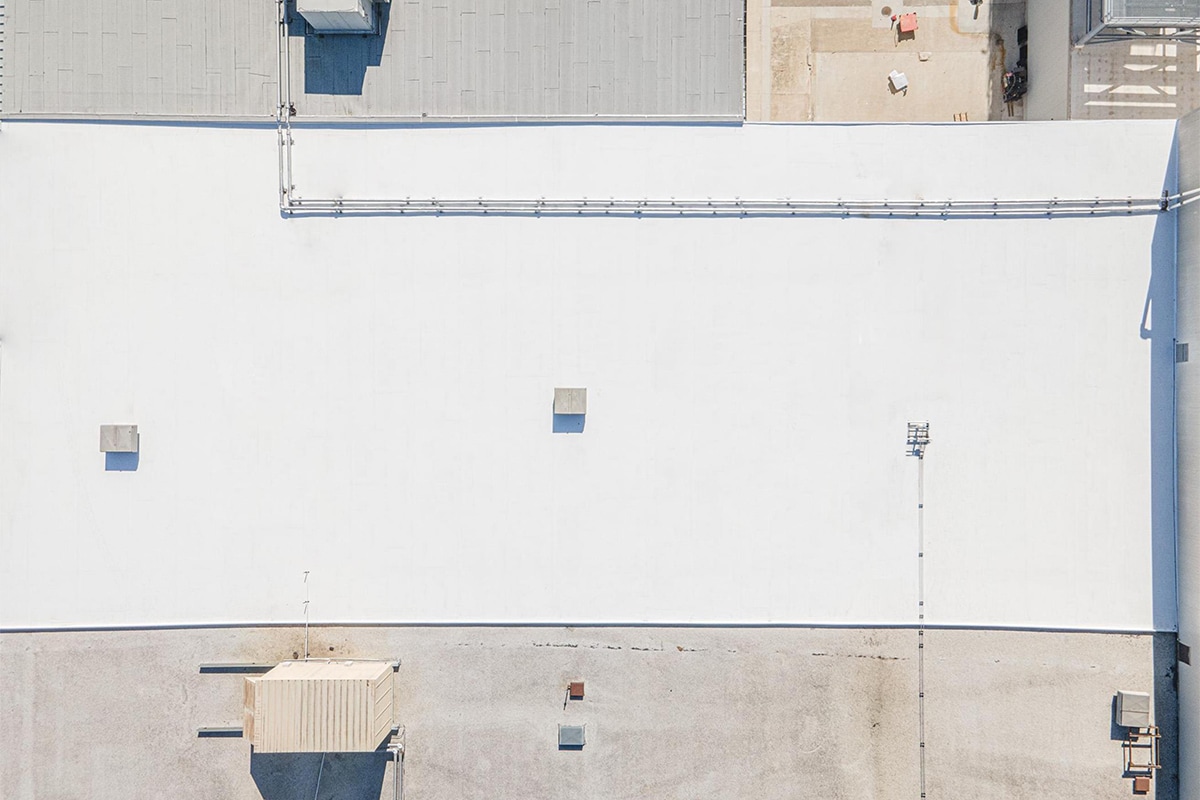

As Tyler, TX, lies on the edge of FM Global’s Very Severe Hail zone, Landmark Roofing and Sheet Metal installed a system approved under FM 4470 - Very Severe Hail (Class 1-VSH) — the most stringent roofing impact resistance standard. The system also has a 30-year Diamond Pledge™ NDL Roof Guarantee with a 5-year Well Roof extension based on a roof maintenance agreement.

This system includes GAF EverGuard® Extreme 60 mil TPO, which was proven through an independent TPO study to be the best performing TPO in accelerated aging per ASTM D573-13. With a high 3-year aged reflectance of 0.72, EverGuard® Extreme TPO may help reduce cooling costs.*

The TPO membrane is adhered with GAF QuickSpray Adhesive, and DensDeck® StormX™ Prime Roof Board is adhered with OlyBond500™ Roofing Adhesive. Two layers of 2.2" EnergyGuard™ Polyiso Insulation are mechanically attached to a 22 gauge steel deck.

*Energy cost savings are not guaranteed and the amount of savings may vary based on climate zone, utility rates, radiative properties of roofing products, insulation levels, HVAC equipment efficiency and other factors.

Landmark Roofing and Sheet Metal logo, GAF commercial contractors in Texas

Landmark Roofing and Sheet Metal - Tyler, TX

*NOTE: Contractors enrolled in GAF certification programs are not employees or agents of GAF, and GAF does not control or otherwise supervise these independent businesses. Contractors may receive benefits, such as loyalty rewards points and discounts on marketing tools from GAF for participating in the program and offering GAF enhanced warranties or guarantees, which require the use of GAF products. Your dealings with a Contractor, and any services they provide to you, are subject to the Contractor Terms of Use.

Related projects

Front view of Svannah Convention Center with new GAF roof

Savannah Convention Center

Single-Ply

Expanding to meet growing demand for events in a historic, vibrant Southern city
The Stanley Center for Peace and Security in Iowa with new EverGuard roofing materials by GAF.

Stanley Center for Peace and Security

Single-Ply

A center for all humankind meets Living Building Challenge objectives with EverGuard® Extreme TPO and EnergyGuard™ NH Polyiso insulation
GAF certified contractors rolling out the new roof of Bozeman Public Safety Center in Montana

Bozeman Public Safety Center

Single-Ply

Protecting the Bozeman Public Safety Center

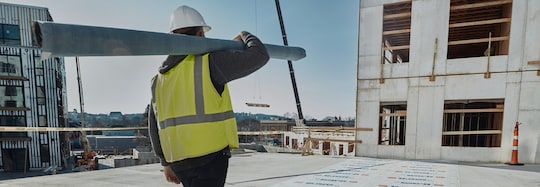

Contractor holding roofing materials walking on the roof of the Revington
